103. Binary Tree Zigzag Level Order Traversal

We don't know how to implement BFS in zigzag order but we could start from simpler BFS traversal.

For BFS, we are going to need,

• queue as an auxillary to temporary hold the node

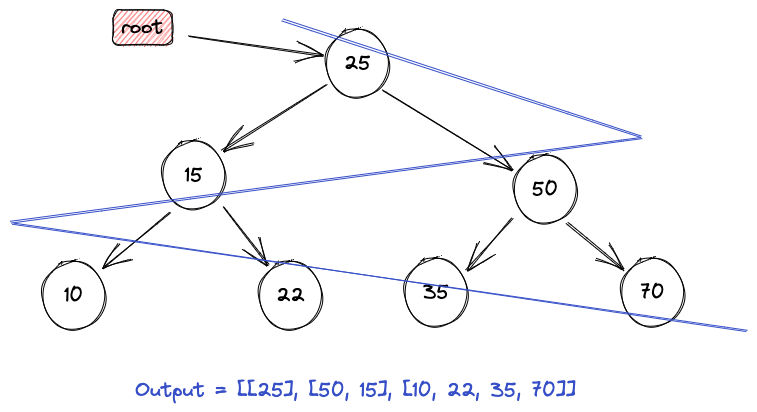

After we figure the regular BFS out for the tree diagram above, we will have

# BFS
[
    [25],
    [15,50],
    [10,22,35,70]
]

# BFS zigzag expected output
[
    [25],
    [50,15],
    [10,22,35,70]
]

From observation, we just need to reverse the even rows to get the output for zigzag.

Approach 1 BFS

# Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
from collections import deque

class Solution:
    def zigzagLevelOrder(self, root: Optional[TreeNode]) -> List[List[int]]:

        if root is None: return []

        queue = deque([root])
        levels = []
        # if flag is even left to right; if flag odd, right to left
        reverse_flag = 0

        while queue:
            levels.append([])

            for _ in range(len(queue)):
                node = queue.popleft()
                levels[-1].append(node.val)

                if node.left:
                    queue.append(node.left)
                if node.right:
                    queue.append(node.right)

            if reverse_flag % 2 == 1:
                levels[-1].reverse()
            reverse_flag += 1

        return levels
